Automativ Guided Vehicles

Automated, self-driving ground vehicles

AGV layouts and paths

Automativ Guided Vehicles (AGV) automate internal material flows, from component replenishment to the removal of finished products. They consist of automated, self-driving vehicles with built-in controllers, electric drive and battery technology. They follow predetermined paths that are marked on the floor as lines, laid as magnetic or inductive strips, or they follow individual floor markers, often in the form of RFID tags.

In the WinMOD-SIMLINE system, ground paths are simulated using parameterisable path elements such as straight lines, curves and junctions from a 3D library. This means that the paths are always visible in the virtual 3D layout, even if they are not actually visible in reality. Ground markers, obstacle objects and sensor reflectors are also installed as 3D library elements. You can assign individual data to RFID tags. .

For virtual commissioning (VC), the plant control system is then connected to the WinMOD system via fieldbus coupling.

FTS Vehicle behaviour

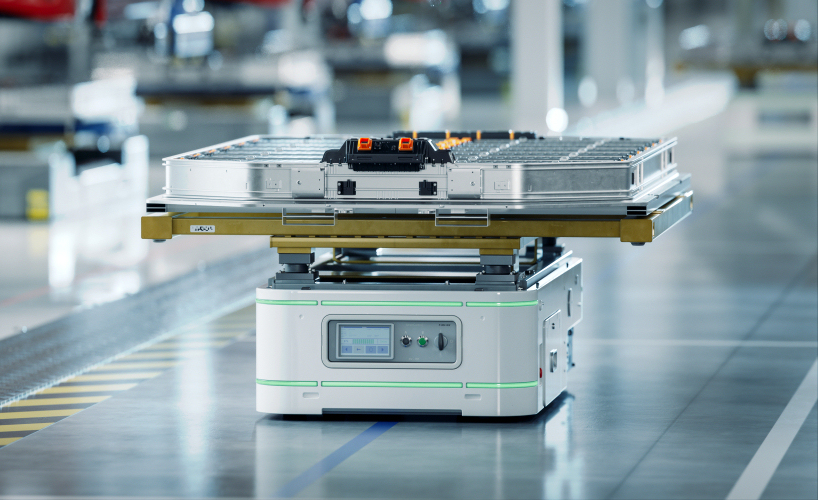

The WinMOD-SIMLINE system uses CAD-based 3D vehicle models as highly individual, tailor-made customer solutions with individually configurable 3D vehicle sensors. They include all common types of underride and lift shuttles, pallet AGVs and fork AGVs.

Depending on requirements, the 3D vehicles move via magnetic or inductive strips, RFID tags or line layouts. To this end, 3D vehicle sensors are used to record and evaluate the respective path system in real time, as well as to simulate mutual vehicle recognition and obstacle detection.

The vehicles can be loaded and unloaded with any transport goods. Direct combination with other 3D technology simulations from the WinMOD-SIMLINE system, such as Robotics, is of course possible. This allows complex logistics processes such as fleet control, traffic management with prioritisation, zone regulations and track & trace functionalities to be comprehensively tested and validated. The integration of modern safety functions (e.g. scanners, emergency stops, optical signals) can also be tested and validated with these VC.
